Creating or adding blend shape after rigging?

1.export your weights,

2.go back detach the skin do the duplicates

3.rebind the skin to the rig and import the weights.

Note that if you have set some keyframe animation ,you should go to 0 frame that no any pose and animation.detach and smooth bind.However,you have initially set no pose on 0 frame

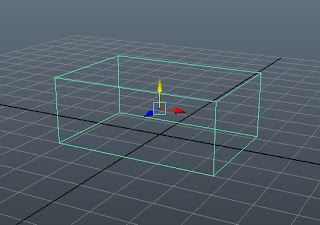

Moving Pivot Point

Sometimes you want to rotate an object around a specific point or scale based on a different point.

1.Select an object in your sence view and choose theMove Tool (w key).

2. Hold the "d "key and drag the object's origin to a new location. You can also press theHome key (PC-Insert key), move the point, then press the Home (PC-Insert) key to cancel.

3.To test your new pivot point

4. You  can also enter your value press Enter + Esc in the object's Channel Box..

Center Pivot Menu Item
You can also reset the pivot point to the object center by choosing Modify > Center Pivot.

Adding Attributes&Connection editor

1.Select L_handCtrl

2.Click on Edit tab in Channel box,then choose Add Attributes

3.type "L_fingerBend_1"in the box of  Long name,Click OK

4.You will find the"L_fingerBend_1"appear in Channel box

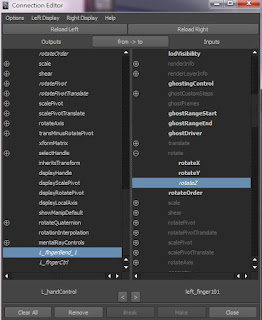

5.Select L_fingerBend_1 in Channel box,then click edit choose Connection editor,The Connection editor window appear

6.Select  L_fingerBend_1 in Outputs windows ,then select L_joint of the finger101in the view,Press Reload Right on the top,then choose rotate Z in Inputs windows

Rotate Z of the L_finger101 appear yellow colour

7.Now,Select L_handCtrl,you can set number to L_fingerBend_1,rotate the finger in the channel box

Press Shift key and click middle button on the mouse to change the number,test it.

8.Select L_HandCtrl again

9.Click on Edit tab in Channel box,then choose Add Attributes


10.Type "L_fingerCtrl_01"in the box of  Long name,Click OK

11.Select the word "L_ fingerCtrl_01" that appears in the channel box so it become higlighted ,then click edit tab and choose Set Driven Key,  The Set Driven Key  window appear.



12.click on Load,then choose selected as driver

13.Select  L_ fingerCtrl_1  in the driver windows,

14.Select  Joint of the L_ finger102 in scene view,then click load choose selected Drivern as shown in the following figure.

15.Select Rotate Z in Driven window

Press Key Button in the Set Key Window,

 There is red colour at the Rotate Z of L_ finger102 in the Channel box

16.Don't close Set Driven Key window,then Set 1 to L_ fingerCtrl_01 in channel box.

17.Rotate finger in scene view,then click Rotate Z in the Drivern List.

Press Key in the Set Key Window, There is red colour at the Rotate Z of L_ finger102 in the Channel box

18. test the contorl,finish

Create Aim Control of the Eye

1.Create>locator

2.Rename the locator  to "L_eyeCtrl

3.Move the Locator that you desire

4.Edit>Delete all by type>Non deformer History

5.Modify>Freeze Transformation

6.Select L_eyeCtrl,and press shift select L_eyeJoint

7.Constrain>Aim

8.Test the Control
